Flavor / WET

Flavor / WET

Neutral-meson mixing provides a stringent test for any proposed structural refinement of particle physics. The measured oscillation is experimentally accessible, but the route from a short-distance interaction to an observed mass splitting passes through several distinct objects: an operator basis, Wilson coefficients, matching and renormalization-group evolution, hadronic matrix elements, CKM factors, phase conventions, and a time-dependent measurement model.

This analysis uses that chain to test a bidirectional bridge between the Sense Model and the established flavor framework of the Standard Model and Weak Effective Theory (WET).

From the Sense side, the R9 Flavor scaffold proposes a detailed structural organization: three neutral-meson transition sectors crossed with eight operator-like support routes. From the physics side, WET specifies what an operator, coefficient, scale, scheme, and observable contraction must contain before that structural organization can enter a calculation.

The objective is not to derive a Wilson coefficient from a structural label. It is to determine whether the Sense scaffold can contribute a useful differentiation of flavor routes, and whether the Standard Model/WET description can refine that scaffold by rejecting distinctions that are only nominal and demanding the physical objects that are still absent.

The complementarity tested here is therefore asymmetric. The Standard Model already supplies the physical theory, conventions, and experimental interpretation. The Sense Model supplies a candidate organization of transition and operator-facing structure. A physical contribution from Sense would require that this organization eventually impose a reproducible constraint that is not equivalent to an arbitrary reparameterization of WET.

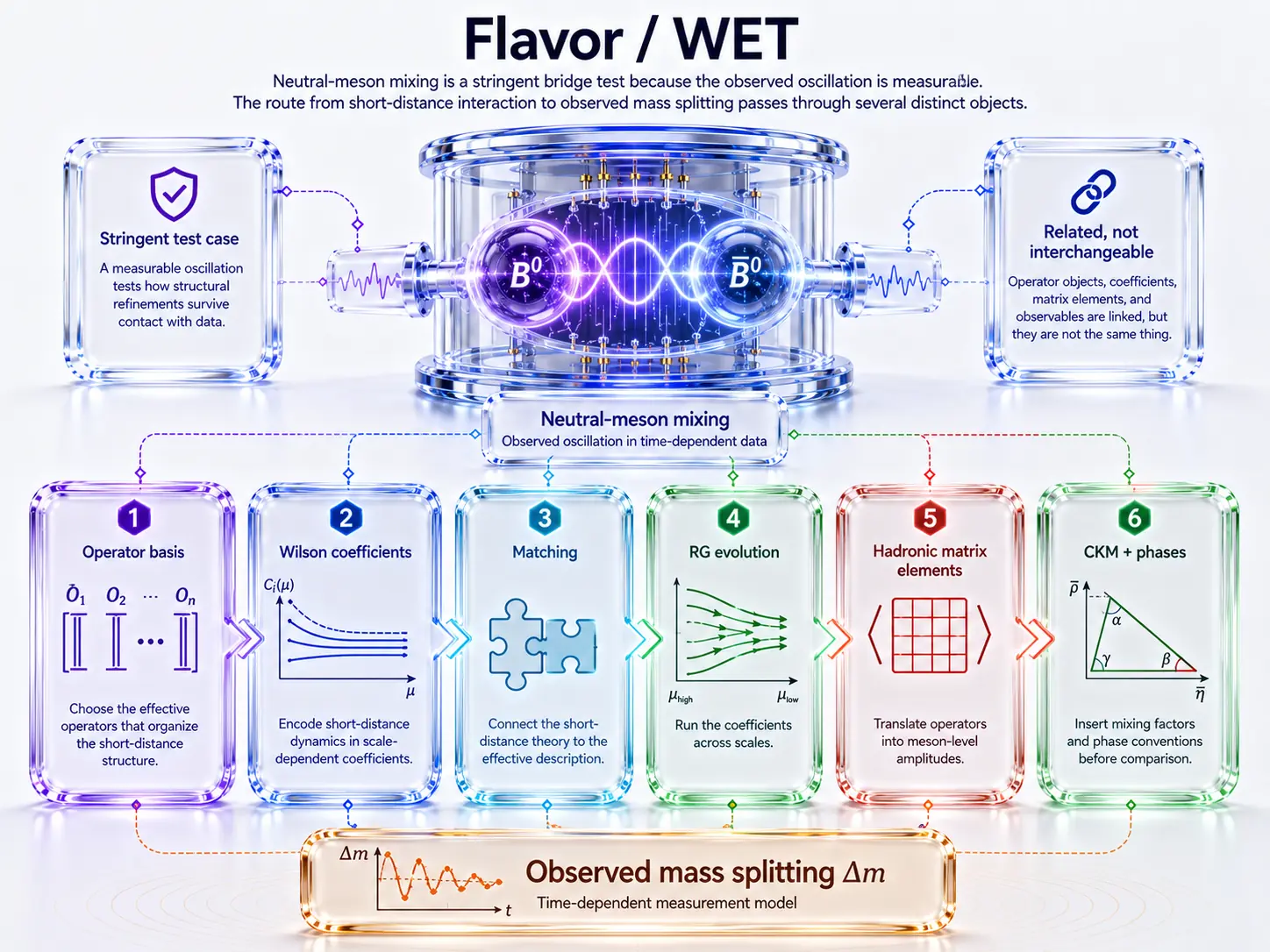

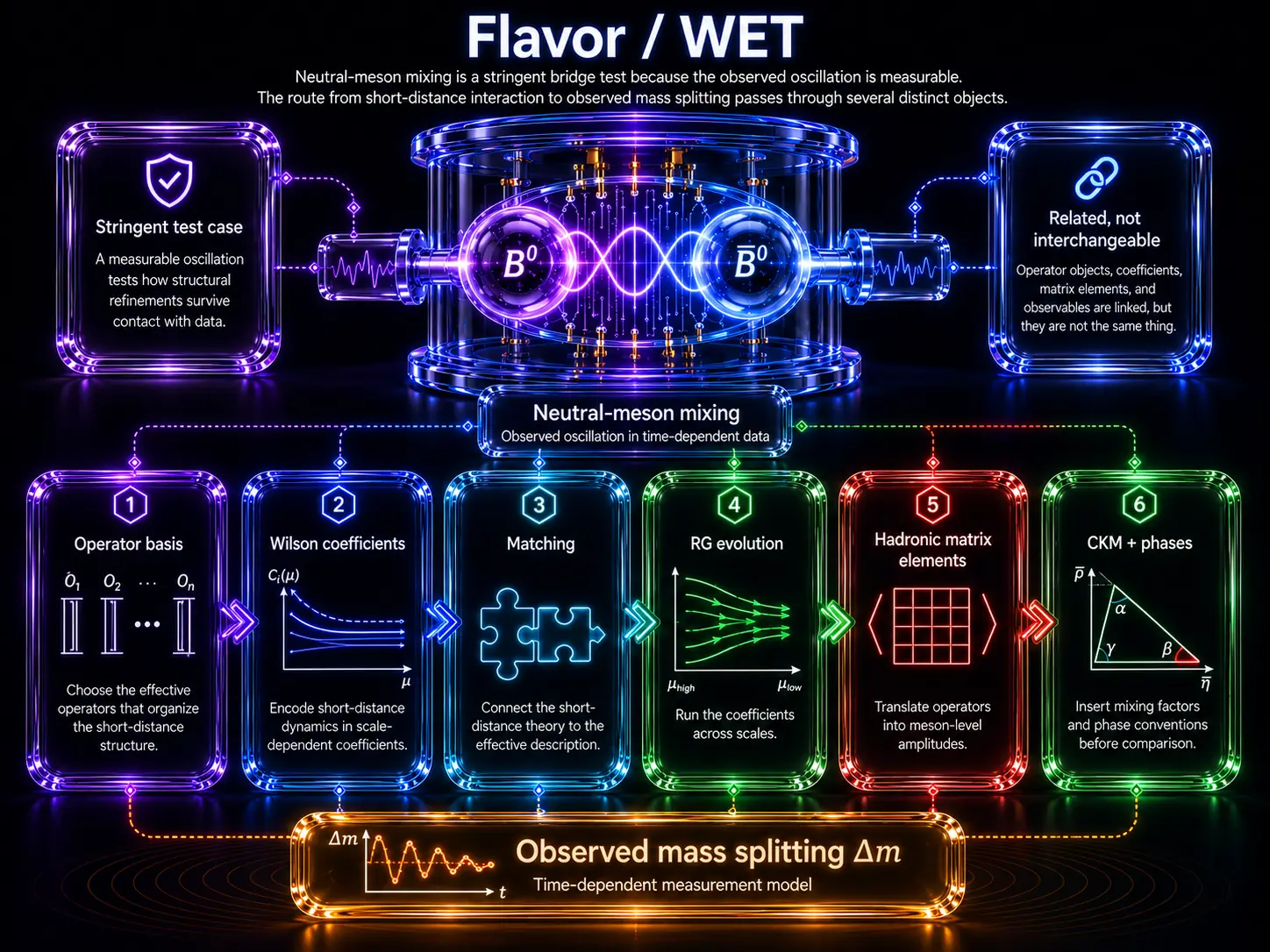

Why neutral-meson mixing is a discriminating test

A neutral B_s meson can be produced with one flavor tag and later decay through a channel associated with its antiparticle. The evolution is described by a two-state system with both dispersive and absorptive components,

i dPsi_s/dt = (M^(s) - i Gamma^(s)/2) Psi_s,

where Psi_s contains the B_s^0 and anti-B_s^0 amplitudes. The off-diagonal quantities M_12^(s) and Gamma_12^(s) have different physical roles. In the standard regime in which |Gamma_12^(s)/M_12^(s)| is small, the mass splitting is approximately

Delta m_s ≈ 2 |M_12^(s)|.

Experiment does not observe M_12^(s) directly. It reconstructs decay products, proper time, and flavor tags, and infers an oscillation frequency from time-dependent same-flavor and opposite-flavor probabilities.

This separation between a theoretical amplitude and a public measurement is central to the bridge. A structural object cannot be compared with an oscillation frequency merely because both carry a flavor label. It must first enter a lawful Hamiltonian, survive the required scale evolution, contract with hadronic matrix elements, and produce an observable under declared conventions.

I selected one B_s, Delta B = 2 route as the running case. This narrow choice avoids two opposite errors. The long-distance difficulty of the neutral-kaon sector is not used to block a B_s-only question, and a result concerning one B_s route is not allowed to promote the complete sd/bd/bs structure.

The two source layers

The analysis keeps two source layers separate.

The first is the R9 Flavor structural package. It contains a 3 x 8 support topology, transition labels, operator-like family names, complex structural components, source-interface slots, and a frozen replay lineage.

The second is the physical flavor framework. It includes neutral-meson mixing, Delta F = 2 effective Hamiltonians, WET operator bases, WCxf conventions, matching and running, lattice-QCD matrix elements, CKM and phase inputs, and time-dependent observables.

These layers were not merged at the level of vocabulary. A label in the structural package was treated as a request for a possible physical attachment. The corresponding physical literature determined what that attachment would have to contain.

This separation is important because the two corpora answer different questions.

The structural package asks how a possible flavor contribution might be organized.

The physical corpus asks whether that organization has a valid operator identity, coefficient, scale path, hadronic contraction, and measurement surface.

The bridge exists only where both questions can be answered without changing the status of either object.

What the 3 x 8 scaffold distinguishes

The R9 Flavor object organizes three transition labels,

T_F = {sd, bd, bs},

facing the neutral-kaon, neutral-B_d, and neutral-B_s sectors.

Across those rows it places eight structural operator-family slots,

S_full8 = {
1_VLL,
1_VRR,
1_LR,
2_LR,
1_SLL,
2_SLL,
1_SRR,
2_SRR
}.

The complete structural object can be written schematically as

C_struct:
T_F x S_full8 -> C_struct,

with shape 3 x 8.

This object performs a real organizational task. It preserves the identity of the three transition sectors. It distinguishes vector-like, scalar-like, left-left, right-right, and left-right route families. It retains separate structural real and imaginary components. It also records whether every declared support slot is present.

In that restricted sense, the topology is complete.

The qualification is essential.

The twenty-four cells are not twenty-four measurements. The columns are not yet a physical WET basis. The entries are not Wilson coefficients. A complex structural component is not automatically a CP-violating phase. A support weight is not M_12, Delta m, or an experimentally inferred amplitude.

The scaffold therefore attempts a differentiation of flavor physics without yet claiming a physical realization of that differentiation.

Its possible value lies in the questions it makes explicit:

Should the sd, bd, and bs sectors remain distinct at every stage of the route?

Which chirality and Lorentz families should be kept separate?

Which apparent duplications require a physical distinction, and which collapse after a basis is specified?

Can real and imaginary orientations be preserved without prematurely assigning them a CP interpretation?

Does the structural organization forbid a mixture that a generic coefficient table would otherwise allow?

These are legitimate bridge questions. They become physical only after the corresponding objects are defined in the effective theory.

Where the scaffold meets WET

For the selected B_s target, a Delta B = 2 effective Hamiltonian may be written schematically as

H_eff^(Delta B=2)(mu)
=
N_bs sum_a C_a,bs^WET(mu) O_a,bs^WET(mu)
+ h.c.

The index a belongs to a declared physical operator basis. Each operator must specify its quark fields, flavor orientation, Lorentz and chirality structure, color contraction, normalization, and relation to the remaining basis. Each coefficient must be associated with that basis, a renormalization scale, a scheme, a derivation or benchmark, and a phase convention.

The normalization N_bs must also be explicit. Depending on convention, CKM factors, Fermi constants, loop factors, or a new-physics scale may be extracted from the coefficient or retained inside it. Two numerical coefficient vectors cannot be compared until those choices are aligned.

WET provides the effective-theory setting for this calculation. WCxf provides a convention for exchanging Wilson-coefficient objects with declared EFT, basis, and scale information. Neither term grants physical identity to a structural column.

This became important because the official WET/flavio Delta F = 2 basis does not organize its eight entries in the same way as the structural full8 table. Similar names such as VLL or LR indicate a possible destination, but they do not establish a one-to-one basis map.

The first physical test was therefore an identity test:

Can every structural slot be mapped to a defined physical operator, including its field content, color contraction, normalization, parity relation, and basis convention?

No such map is admitted in the current lane.

The structural cell can identify an address toward which a physical object might be attached. It cannot enter the Hamiltonian as a term.

The bidirectional refinement

The analysis was designed to allow refinement in both directions.

From Sense toward flavor physics, the scaffold proposes a more explicit partition of the problem. It separates transition sector from operator family, support topology from coefficient value, real/imaginary orientation from physical phase, and structural completeness from observable completeness.

This organization can be useful even before a prediction exists. It prevents a B_s result from being silently generalized to the kaon and B_d sectors. It keeps left-right routes separate from left-left or scalar routes. It exposes the position at which a coefficient, scale map, matrix element, covariance object, and observable must enter.

From the Standard Model and WET toward Sense, the physical framework applies a stronger filter. It requires exact operator identities rather than suggestive labels. It distinguishes a coefficient from an amplitude, an amplitude from an observable, and an uncertainty from the absence of an object. It also requires scale and scheme compatibility, CKM and phase conventions, and a source-native route to measured data.

The resulting complementarity is not a merger of two theories.

The Sense scaffold supplies a candidate differentiation grammar.

The Standard Model/WET framework determines whether the proposed distinctions have operational meaning.

At the present stage, the second direction is stronger. The physical framework has refined the Sense object more than the Sense object has refined physical flavor theory. Several structural terms acquired narrower meanings, and several possible promotions were rejected.

That asymmetry is scientifically useful. A bridge should permit one side to correct the other rather than guaranteeing mutual confirmation.

The expected physical handoff

The proposed handoff from the B_s structural row to a physical coefficient vector can be written as a partial map,

beta_R9F^coeff:
C_struct^(S_full8)
-> C_WET^(O_WET),

C_struct_bs
-> C_WET_bs(mu_in).

The arrow is partial because its existence must be established. Writing the map does not construct it.

A successful handoff would require either a source-native physical coefficient object or a derivation from an admitted physical model. If the derivation began above the electroweak scale, a matching route into WET would also be required.

Once admitted, the coefficient vector would still have to travel to a scale compatible with the hadronic matrix elements,

C_WET_bs(mu_b)
=
U_bs(mu_b, mu_in) C_WET_bs(mu_in),

with the basis, renormalization scheme, threshold treatment, perturbative order, and evanescent-operator convention held fixed.

The resulting coefficients would then enter

M_12^(s)
=
[1/(2 m_Bs)]
<B_s^0 | H_eff^(Delta B=2) | anti-B_s^0>.

This contraction requires hadronic matrix elements in the same basis, normalization, scale, and scheme. Their uncertainties must be represented by a joint covariance appropriate to the selected target. CKM inputs and complex-phase conventions must be specified consistently.

Only after this chain is complete can Delta m_s or another neutral-meson observable be constructed. A comparison with experiment would then require the corresponding likelihood or covariance model.

This was the expected route by which the Sense differentiation could become physically testable.

What the analysis obtained

The structural side reached a clear and reproducible result.

The 3 x 8 support topology is complete within its declared object. The sd, bd, and bs rows are preserved. The eight operator-like families are present. The table can be replayed, and the selected cell C_struct_(bs,1_VLL) can be followed toward a declared physical target.

The physical handoff did not pass its first admission gate.

No physical basis map from the full8 slots to a declared WET operator basis was admitted. No physical coefficient vector C_WET_bs(mu_in) was derived or ingested. The structural weights had no physical normalization, scale, scheme, covariance policy, or permission for use in a Hamiltonian contraction.

The first missing object was therefore not a smaller error bar.

It was the physical coefficient object itself.

This distinction blocks several false repairs.

A structural imaginary component cannot be reinterpreted as a CKM or new-physics phase.

A structural zero-phase policy cannot establish physical CP conservation.

Independent uncertainties cannot be attached to support values and treated as a physical coefficient covariance.

A numerical scaling chosen after inspecting Delta m_s would be retuning rather than matching.

WCxf formatting cannot create the missing coefficient.

Because the first physical arrow was not admitted, the downstream quantities were not computed. No RG-evolved coefficient vector, M_12^(s), Delta m_s, residual, chi-squared value, likelihood, or fit was produced.

NOT_COMPUTED is a status, not the numerical value zero. The lane did not agree with the data, and it did not disagree with the data. It stopped before a physical prediction existed.

How flavor physics calibrated the Sense Model

The encounter with the Standard Model/WET chain constrained the Sense description in several specific ways.

First, “complete” became object-relative. The structural topology is complete; the effective theory is not.

Second, operator-family labels became addresses rather than identities. VLL, LR, and SLL indicate a direction of comparison, but they do not define a physical basis element.

Third, structural complex components lost any automatic CP interpretation. A physical phase requires an invariant, a convention, an amplitude, and a measurement route.

Fourth, support amplitude was separated from physical amplitude. A support weight can describe the internal organization of the scaffold. M_12^(s) is a convention-bound matrix element of a physical Hamiltonian.

Fifth, uncertainty was separated from absence. A coefficient with a wide uncertainty is still a physical coefficient object. The current lane has no admitted physical coefficient object to which an uncertainty could be attached.

Sixth, the B_s target became local. A future success in this route would not automatically validate the bd, sd, or full R9 Flavor object.

These are not cosmetic revisions. They reduce the number of claims the structural package is allowed to make and define the exact objects required for reopening.

How Sense may complement the Standard Model

The present lane does not modify the Standard Model or improve a WET prediction. Its contribution is currently structural.

A stronger Sense contribution remains possible, but it must be non-generic.

For example, the scaffold might eventually imply that only a restricted subset of WET operators can be activated, that two apparently independent coefficient directions obey a stable relation, that a phase orientation is correlated across transition sectors, or that a proposed contraction must be rejected under a specific source condition.

Such a result would have to survive translation into a declared physical basis. It would also have to be distinguishable from an arbitrary basis choice, parameter reduction, or post hoc fit.

A suitable future specificity test would compare two routes.

The baseline route would use a generic WET parameterization for one declared Delta B = 2 sector.

The Sense route would use a predeclared structural-to-physical map with its own selection, non-mixing, or abstention rules.

Both routes would use the same physical coefficients or derivation, RG evolution, hadronic matrix elements, covariance, CKM inputs, and observed likelihood.

The Sense bridge would become physically informative only if it supplied a reproducible restriction or residual structure not already present in the baseline.

If the two routes differed only by notation or basis reorganization, the Sense contribution would remain methodological.

This criterion preserves the intended two-way relation. The Sense Model is permitted to propose a finer physical question. The Standard Model and data retain the authority to determine whether that question identifies a real distinction.

Current status

The Flavor / WET route remains FROZEN_STRUCTURAL_ONLY.

The admitted result is a complete structural support topology, a narrow B_s target, a WET-facing interface, and a replayable blocker sequence.

The route does not admit:

a physical WET or WCxf coefficient object;

an explicit full8-to-physical-basis map;

matching from an ultraviolet theory or SMEFT;

renormalization-group evolution of admitted coefficients;

a compatible hadronic matrix-element vector with lawful covariance;

a complete CKM and phase policy;

an observed likelihood;

M_12^(s), Delta m_s, a residual, a fit, or a theorem.

A responsible reopening would begin with one declared physical target and one declared Hamiltonian convention. It would then admit the operator basis and physical coefficient vector with provenance, scale, scheme, normalization, and uncertainty policy. Only after matching, running, hadronic contraction, CKM and phase binding, and observational likelihood admission could a flavor prediction be evaluated.

The present result is therefore a bidirectional refinement of structure, not a new result in flavor phenomenology.

The Sense Model contributed a candidate grammar for distinguishing transition and operator-facing routes.

The Standard Model and WET converted that grammar into a set of exact physical requirements and removed the interpretations that the source could not support.

The bridge remains useful because it records both outcomes: where the Sense scaffold may add detail, and where established physics requires that detail to remain structural.
